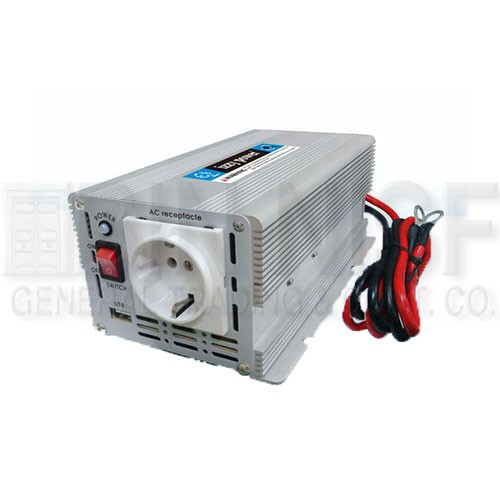

Bin No : 3101144
Brand: Izzy Power (Taiwan)
35.000 KWD
(0 review)
|
Model No |
HT-M-600-12 |
|
Wave Form |
Modified sine wave |
|
AC Voltage |
120V/230V |
|
Output power |
600W |
|
Surge power |
1200W |
|
Frequency |
50/60HZ± 3% |
|
AC regulation |
±8%(100V:±10%) |
|
USB port |
3A/5V MAX. |
|
No Load current draw (12V) |
0.5A |
|
DC voltage (V) |
12 |
|
Voltage range |
10~16VDC (12V) |
|
Efficiency |
85% |
|
DC connector |
Cable X 1 |
|
Battery low alarm |
10.5 ± 0.5V (12V) |
|
Battery low shutdown |
10 ± 0.5V (12V) |
|
Over voltage |
16 ± 0.5V (12V) |
|
Over temperature |
55℃ ± 5℃ |
|
Short circuit protection |
Shut-Off |
|
Battery polarity reverse |
Fuse burn out |
|
Over load |
Shut down if Re-Try is STILL FAILED |
|
Working temperature |
-15℃~ +45℃ |
|
Working humidity |
20%~90% RH Non-Condensing |
|
Storage temperature, Humidity |
-30℃~ +70℃/-22℉~ +158℉, 10~95% RH |
|
Temperature coefficient |
±0.05% ℃ (0~55℃) |
|
Dimension (LXWXH)(MM) |
230 X 95 X 75 |
|
Net weight (Kg) |
1.4 |
