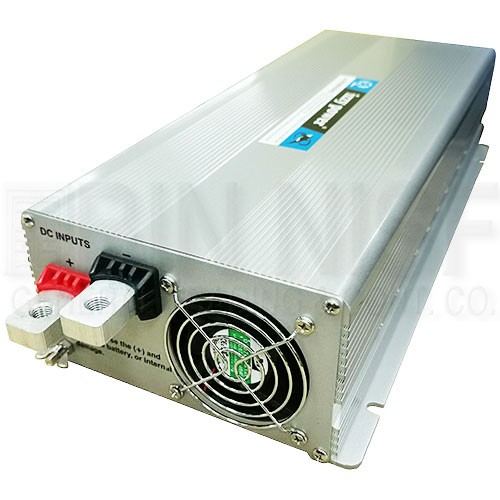

DC TO AC INVERTER 12 V 2000 W - IZZY POWER (TAIWAN)

Model

HT-M-2000-12

Output

Wave form

Modified Sine Wave

AC voltage

AC 240 V

Continuous power

2000 V

Surge power

4000 W

Frequency

50/60Hz±3%

AC regulation

±8%(100V:±10%)

Input

No load current draw

0.4A (12V)

DC voltage

12 V

Voltage range

10~16VDC (12V)

Efficiency

85%

DC connector

Cable (included)

Protection

Bat. low alarm

10.5±0.5V (12V)

Bat. low shutdown

10±0.5V (12V)

Over voltage

16±0.5V (12V)

Over temperature

55^oC±5^oC

Short circuit protection

Shut-off

Bat. polarity reverse

Fuse burn out

Over load

Shut down if re-try is still failed

Environment

Working temperature

-15^oC~ +45^oC

Working humidity

20%~90%RH non-condensing

Storage temp., humidity

-30^oC ~ +70^oC /-22^oF ~ +158^oF, 10~95% RH

Temp. coefficient

±0.05%^oC (0~55^oC)

Safety & EMC

EMI conduction & radiation

Compliance to EN55022

EMS immunity

Compliance to EN55024, EN/IEC 61000-4-2, EN/IEC 61000-4-3, EN/IEC 61000-4-8

LVD

Compliance to EN60950-1

Dimensions (L x W x H)

435 x 179 x 88.5 mm

Net weight

3.70 kg

Made

Taiwan
