PRODUCT DETAILS
Model
|
535003
|

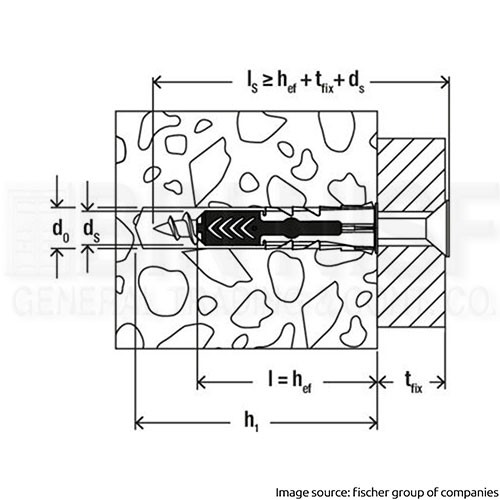

Drill diameter (d0)
|
8 mm
|
Min. drill hole depth (h1)
|
50 mm
|
Min. panel thickness (dp)
|
12.5 mm
|
Anchor length (l)
|
40 mm
|
Min. bolt penetration (lE,min)
|
45 mm
|
Screw dimension (ds x ls)
|
5.5 x 77 mm
|
Contents
|

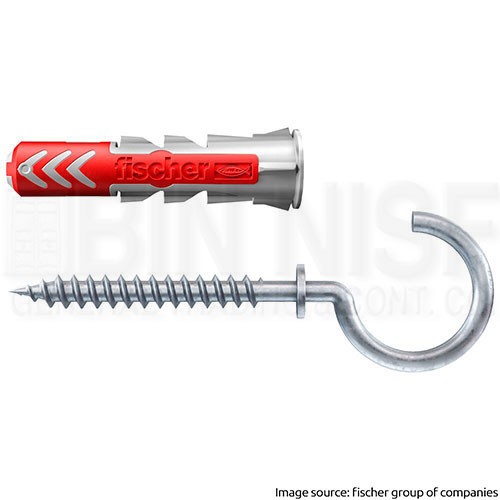

4 x DuoPower 8 x 40
4 x Round hook 5.5 x 77
|
Amount
|
4 pcs
|

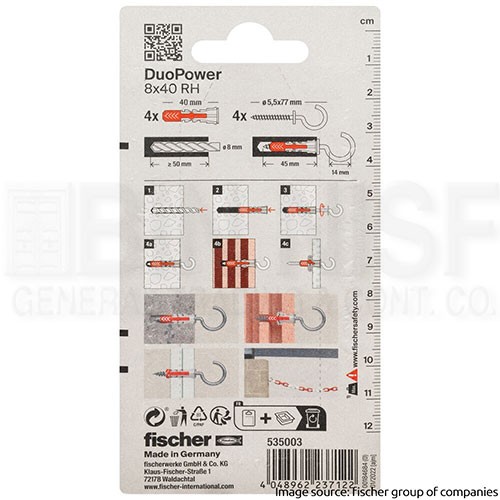

Packaging
|
Blister card
|
Made
|
Germany
|
- Combination of two material components for more performance

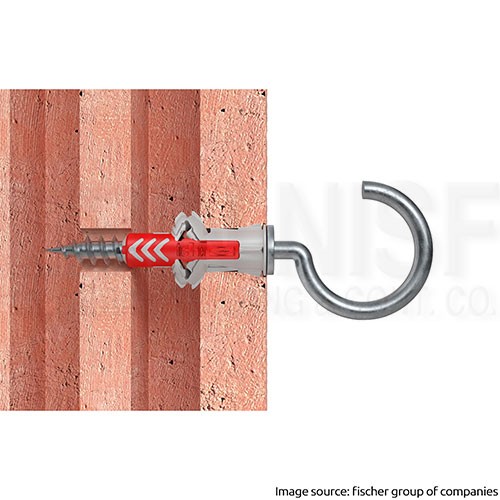

- Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting)
- Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole
- Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly
- With the appropriate round hook for a perfect hold
- Attention: Round and eye hooks are not suitable for dynamic loads, e.g. for swings or hammocks
Advantages:
- Two component materials for top load values and intelligent functioning depending on the substrate
- The narrow plug rim prevents slipping into the drill hole
- The greater anchorage depth of the DuoPower 6 x 50, 8 x 65 and 10 x 80 means that the plug is especially suited to fixings in hollow building materials, aerated concrete and to bridge plaster
- Great feedback (feel-good factor) of the plug. You can feel exactly, when the plug is installed perfectly
- The serrated anti-rotation feature prevents rotation in the drill hole during installation
Applications:
- Wall cabinets, Shelves, Mirror cabinets, Tool walls, Heavy mirrors, Wardrobes
Building materials:

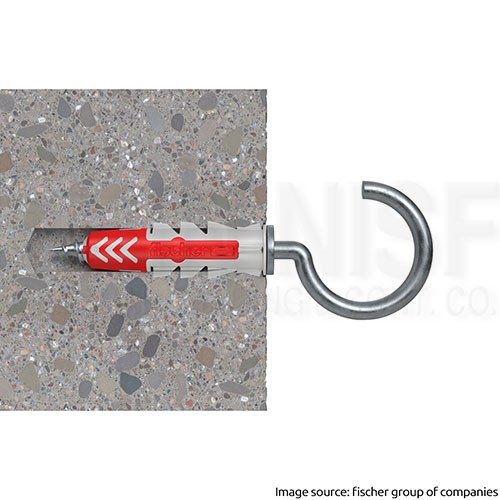

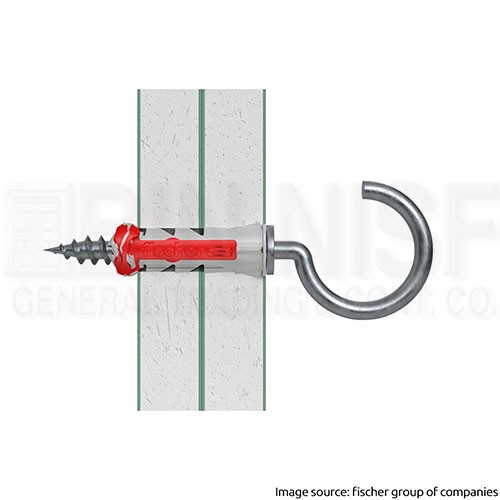

- Concrete, Solid brick, Solid sand-lime brick, Aerated concrete, Vertically perforated brick, Perforated sand-lime brick, Plasterboard, Gypsum plasterboard and gypsum fibreboards, Hollow blocks made from lightweight concrete, Cavity floor slabs made from bricks and concrete or similar, Natural stone, Chipboard, Solid panel made from gypsum, Solid brick made from lightweight concrete
