PRODUCT DETAILS
Model
|
14892
|

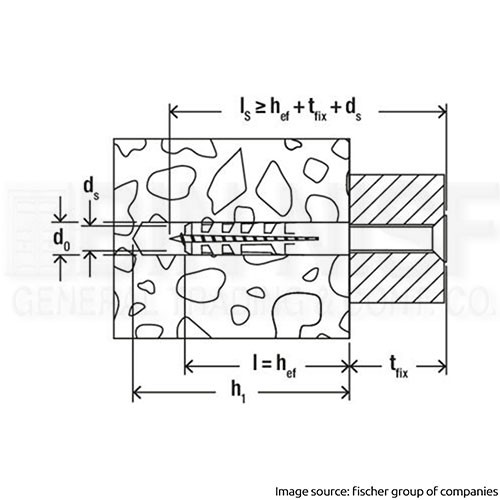

Drill diameter (d0)
|
5 mm
|
Anchor length (l)
|
25 mm
|
Min. drill hole depth (h1)
|
35 mm
|
Screw dimension (ds x ls)
|
4.3 x 35 mm
|
Amount
|
10 pcs
|
Packaging
|
Blister card
|
Made
|
Czech Republic
|
- Simple insertion due to the ease of pushing in the plug
- The anti-rotation lock prevents rotation in the drill hole. This guarantees a high degree of safety during installation
- With hook
Advantages:

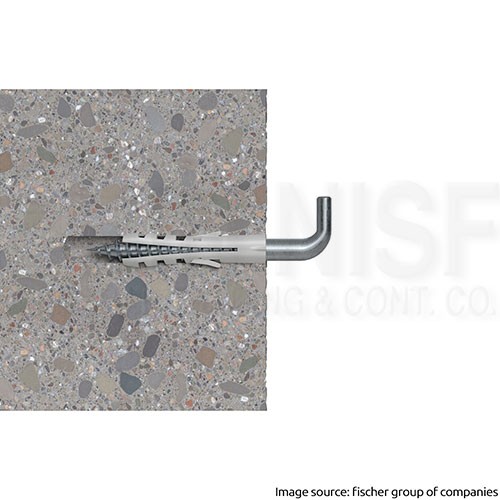

- The rimless plug sleeve allows for the plug to be set as deep as required below the plaster to the bearing substrate to achieve the maximum load-bearing capacity
- The slimline plug geometry makes it easy to push the plug into the drill hole. For a fast and simple installation
- As the plug only expands in two directions, it is possible to direct the expansion forces so that they run parallel to the edge of the building material by turning the plug. This allows for smaller edge distances
- The anti-rotation lock prevents the plug rotating in the drill hole, thus guaranteeing a high level of installation safety
Applications:
- Lighting, Light shelves, Mirror cabinets, Letter boxes, Curtain rails, Electrical installations
Building materials:
- Concrete, Solid sand-lime brick, Natural stone with dense structure, Solid brick made from lightweight concrete, Solid brick

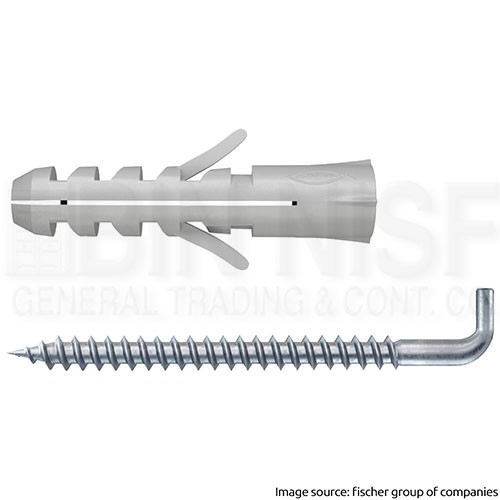

fischer plug fischer plugs fischer duopower 10 pcs 10 piece fischer Expansion plug S 5 WH with angle hook
