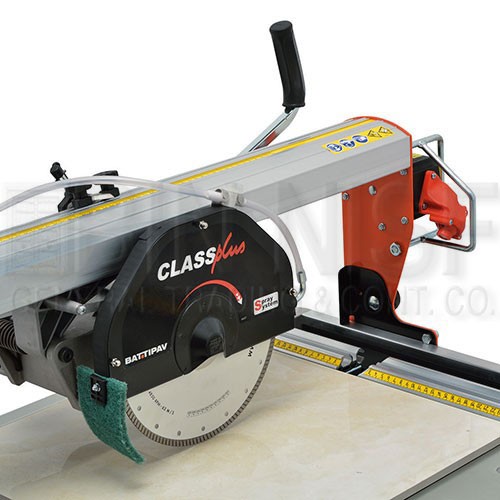

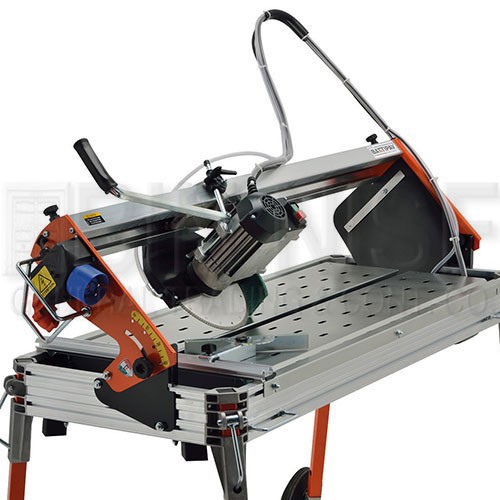

661100 CLASS PLUS 1050 BRIDGE SAW - BATTIPAV (ITALY)

Bin No : 429056

Brand: Battipav (Italy)

400.000 KWD

2 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	1050
Max cutting lenght	910 mm (1050 mm with H. max 42 mm)
Size tile for diagonal cutting	645X645 mm (740×740 mm with H. max 42 mm)
Max cutting thickness	65 mm
Diamond blade diameter	Ø250 mm
Tool hole	Ø25,4 mm
Power engine	1,8Hp / 1,4Kw
Laser instrument	Not available
Engine type	SINGLE-PHASE 230V~50Hz
Rotation speed	2800rpm
Side bench dimesion	1084×523 mm
Machine's dimension	1440 x 675 x H 1300mm
Weight	47 kg
Thermic protection	170°c
Water pump	S0
Water tank capacity	Min. 18 / Max. 23 liters
Max cutting depth for 45° (jolly) cut	53mm
Max cutting depth with 2 runs	80mm
