PRODUCT DETAILS
Model
|
BAS 318 PRECISION WNB (619009000)
|
Rated voltage
|
220-240 V / 50 - 60 HZ
|
CHARACTERISTICS
|
Dimensions
|
665 x 980 x 1600 mm // 26 3/16 x 38 19/32 x 63 inch
|
Support surface
|
560 x 400 mm // 22 1/16 x 15 3/4 inch
|
Working height with stand
|
1000 mm / 40 inch
|
Sawing bench swivel range
|
0 - 45 °
|
Cutting height
|
170 mm / 6 1/2 inch
|
Passage width
|
307 mm / 12 3/32 inch
|
Cutting speed
|
410 / 880 m/min
|
Saw belt length
|
2240 mm / 88 3/16 inch
|
Mains voltage
|
220 - 240 V
|
Rated input power
|
900 W
|
Output power
|
660 W
|
Weight
|
79 kg / 174.2 lbs
|
- High precision and stability for highest cutting quality
- Quiet belt path thanks to balanced flywheels with rubber coating
- Top and bottom HSS precision three-roller guide of the band saw blade for accurate cutting results, adjustable without tools
- Two cutting speeds for various applications and materials
- Precise rip fence with double clamping and quick fastening
- Quiet induction motor, maintenance-free and robust
- Restart protection: prevents unintentional start-up after power supply interruption
- Easy inclination adjustment of the grey cast iron saw table for precise incline cuts thanks to toothed ring guide
- Quick-action clamping lever and door opening without tools for easy saw blade change
- Blade clamp indicator with scale for easy control of the blade tension
- Tool-less height adjustment of the saw blade guard
- LED work light for illumination of the cutting line
- External extraction possible for low-dust working
- Drawer for simple disposal of collected sawdust
- Extendable table width extension for processing large workpieces
- Radius cutting with circle sawing attachment (accessory)
- Regrinding surfaces and curved sawing cuts with belt sanding attachment (accessory)
- Stand with wheels for comfortable change of position
- Includes:
- Universal band saw blade A6
- Mitre Fence
- Suction adapter (for Ø 44, 58, 100 mm)
- Dust collection container
- Push stick
- Stand
- Rip fence

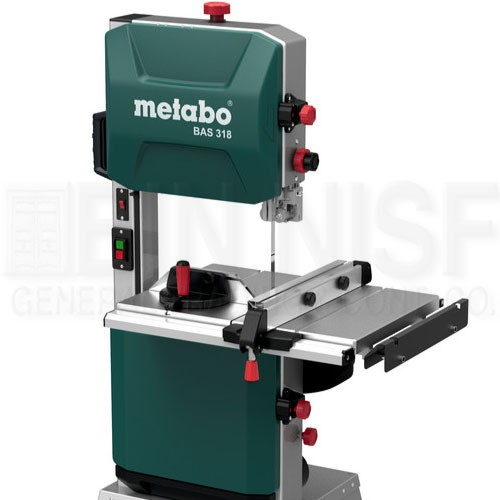

metabo band saw BAS 318 PRECISION WNB (619009000)
