VENTILATING FAN INDUSTRIAL 25GSC - KDK (JAPAN)

Bin No : 317125

Brand: KDK (Japan)

34.000 KWD

14 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	25GSC
Blade size	10 inch (250 mm)
Voltage	Single phase
Frequency	50 Hz
Consumption	44 W
Air volume	1120 cmh (659 cfm)
Max. speed	1380 rpm (min^-1)

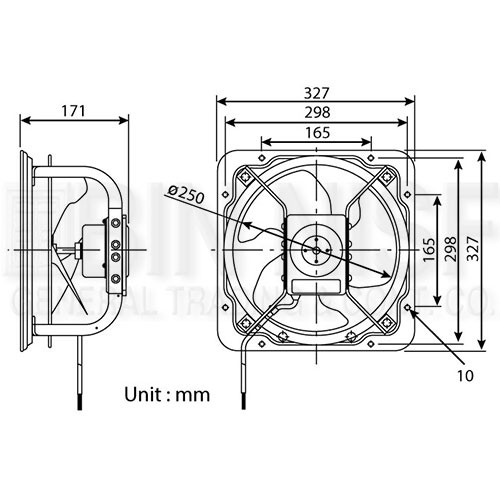

Dimensions (W x H x D)	327 x 327 x 171 mm
Weight	4.40 kg

High pressure series
Reversible, high performance motor
Distinctive wave shape blade delivers a smooth and turbulence-free Airflow
Bell mouth construction incorporated with new blade enables operation with high static pressure
Durable powder coating ensure high rust-resistant capability
Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
High performance totally enclosed motor with thermal cut-off
Able to be used over an ambient temperature range of from -10℃ to +50℃
Possible to install horizontally or vertically
