VENTILATING FAN INDUSTRIAL 60GTC - KDK (JAPAN)

Bin No : 3179231

Brand: KDK (Japan)

180.000 KWD

1 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	60GTC
Blade size	24 inch (620 mm)
Voltage	Three phase
Frequency	50 Hz
Consumption	325 W
Air volume	9540 cmh (5615 cfm)
Noise	49 dB(A)
Max. speed	950 rpm (min^-1)

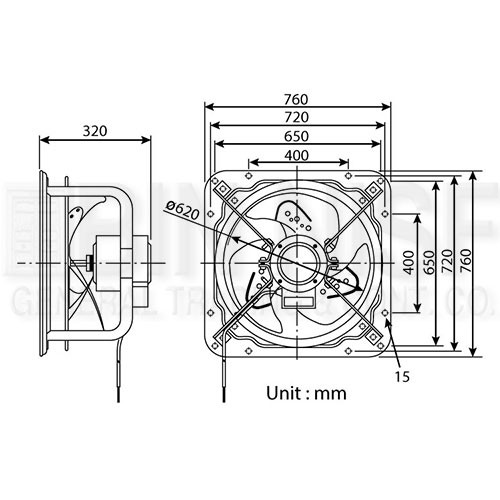

Dimensions (W x H x D)	760 x 760 x 320 mm
Weight	34 kg

High pressure series
Reversible, high performance motor
Distinctive wave shape blade delivers a smooth and turbulence-free airflow
Bell mouth construction incorporated with new blade enables operation with high static pressure
Durable powder coating ensure high rust-resistant capability
Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
High performance totally enclosed motor with thermal cut-off
Able to be used over an ambient temperature range of from -10 to +50^oC
Possible to install horizontally or vertically
