VERTICAL MULTI STAGE CENTRIFUGAL PUMP VLRX 16 - 80 FT - PENTAIR (ITALY)

Bin No : 5210130

Brand: Pentair (Italy)

665.000 KWD

2 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		VLRX 16 - 80 FT
Rated voltage		415 V Three phase
Motor power		10 hp (7.5 kW)
Max. capacity		350 l/min (21 m³/h)
Max. height		104 m
Connections	Inlet	2 inch
	Outlet	2 inch
Max. environmental temperature		40^oC
Liquid temperature		-15 to +120° C
Max. operating pressure		25 bar ( max temp 85° C)
No load speed		2900 rpm
Base plate		Cast iron EN GJL 200
Motor stool
Motor coupling
Pump body		Stainless steel Inox X2CrNiMo17-12-3 (AISI 316)
Seal guard
Sleeve
Impeller
Diffuser
Shaft
Rotating seal		Silicone carbide
Stationary seal		Carbon
Gaskets / seals		EPDM
Protection degree		IP 55
Insulation class		F

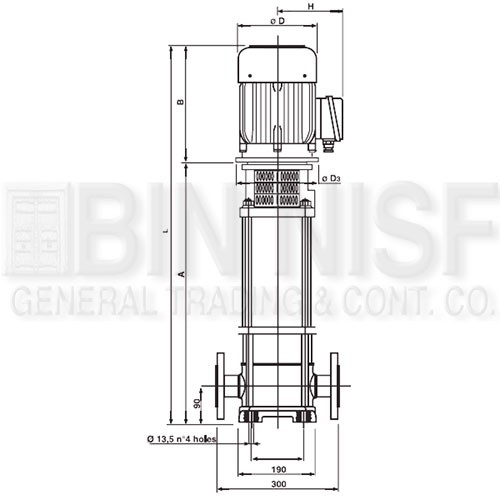

Dimensions (H x W)		1095 x 300 mm
Weight		92 kg
