SUBMERSIBLE PUMP 1.5 HP SNG 1402-VS - SPERONI (ITALY)

Bin No : 5230082

Brand: Speroni (Italy)

128.000 KWD

10 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		SNG 1402-VS (101299070)
Voltage		230 V 50 Hz
Phase		Single-phase
Rotation		2800 m^-1 r.p.m.
Nominal power	HP	1.5 HP
	P2	1.1 kW
Input power	P1	1.35 kW
Ampere		6.3 A

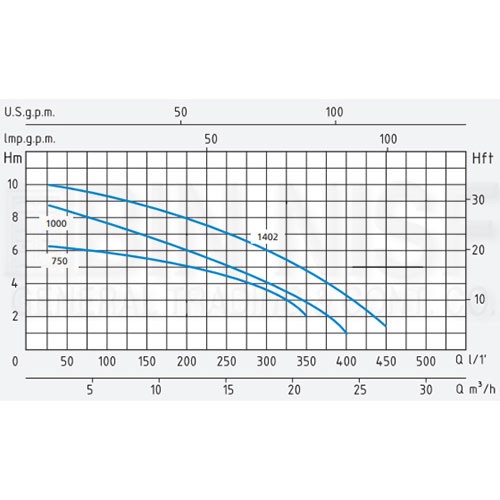

Performances	Q max	450 l/min
	H max	10 m
Mouths	mand.	2 inch
Capacitor		20 µf
IP rating		68
Thermallyt protected		Yes
Net weight		13.25 Kg
Made		Italy

Operating Conditions:

Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Temperature max. liquid: 35°C (for other uses)
Maximum immersion depth 10 mt.
Grain size inlet Ø 50 mm
Min. suction level 70 mm
Continuous duty

Motor:

Single-phase 230V-50Hz (with floater)
Dual chamber with oil bath motor for cooling and bearing lubrification
Permanent split capacitor
Insulation Class F
Protection IP 68

Materials:

Handle: Stainless Steel AISI 304+Nylon
Motor casing: Stainless Steel AISI 304
Pump body: Cast iron
Impeller: Stainless Steel AISI 304
Suction grid: Stainless Steel AISI 304
Shaft with rotor: Stainless Steel AISI 304
Mechanical seal in oil chamber: Silicon/Silicon/NBR

Applications:

Submersible drainage stainless steel water pumps, with stainless steel plunged back impeller Vortex type
Able to drain decanting cesspools and to pump waste water for domestic and civil purposes
