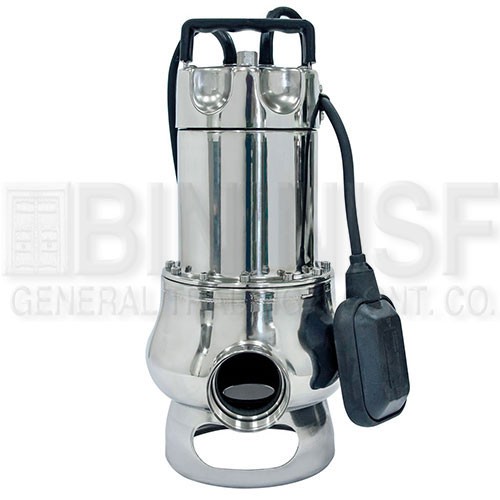

SUBMERSIBLE PUMP 1 HP SXG 1000 - SPERONI (ITALY)

Bin No : 5230081

Brand: Speroni (Italy)

105.000 KWD

5 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		SXG 1000 (102000450)
Phase		Single-phase
Rated power	HP	1
Rated power	kW	0.75
Absorbed power	kW	1.1

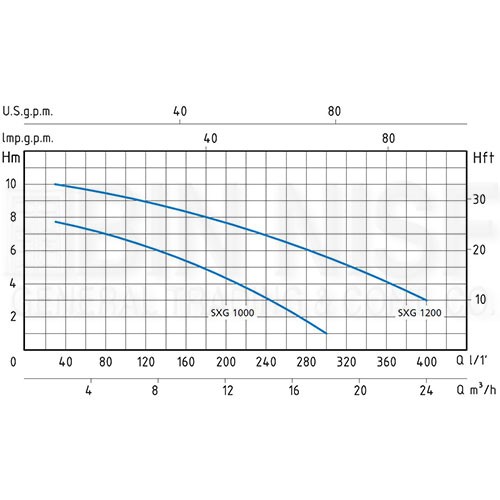

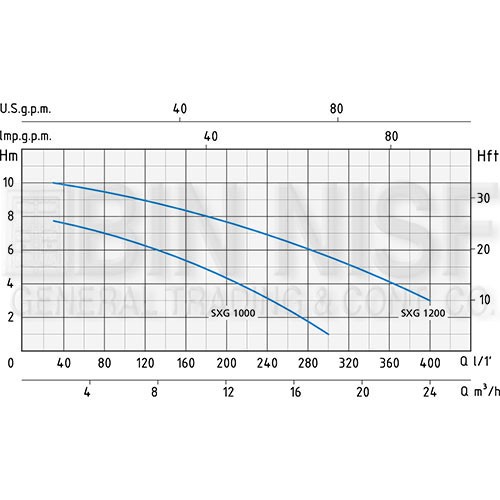

Performances	Q (L/min)	300
Performances	H (m)	7.8
Mouths	mand.	1.1/2 inch
Capacitor		16 µf
Made		Italy

Operating Conditions:

Liquid temperature up to 35°C (for home use according to EN 60335-2-41)
Max. liquid temperature: 35°C (for other uses)
Maximum immersion depth 5 mt.
Grain size inlet Ø 35 mm
Min. suction level 65 mm
Continuous duty

Motor:

Single-phase 230V-50Hz (with floater)
Dual chamber with oil bath motor for cooloiling and bearing lubrification
Mechanical seal in oil bath
Permanent split capacitor
Insulation Class F
Protection IP 68

Materials:

Handle Stainless Steel AISI 304
Motor casing Stainless Steel AISI 304
Pump body Cast Iron
Impeller Stainless Steel AISI 304
Suction grid Stainless Steel AISI 304
Shaft with rotor Stainless Steel AISI 304
Mechanical seal Ceramic/Graphite/NBR

Applications:

Drainage submersible stainless steel water pumps with stainless steel impeller
Able to drain decanting cesspools and to pump waste water for domestic and civil purposes
