ELECTRIC WINCH 300 KG - KIO WINCH (TAIWAN)

Bin No : 108001

Brand: Kio winch (Taiwan)

205.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	GG-300
Voltage	220 V, 50 Hz, (Single phase)
Motor power	1.5 hp x 4P
Capacity	300 kg
Lifting speed	10 - 15 m/min
Rope length	30 m
Rope diameter	Ø6 mm

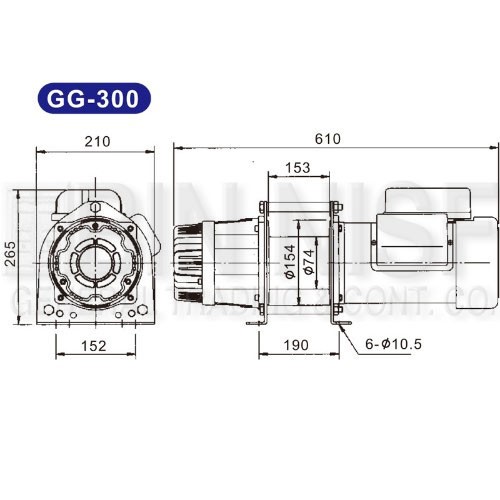

Drum dimensions (width x drum dia. x flange dia.)	110 x 94 x 154 mm
Weight	34 kg
Made	Taiwan

Positive retention of wire rope on to drum
Electromagnetic spring-applied fail safe brake
Heavy duty high efficiency ball bearing on all running surfaces
Planetary gearing for maximum mechanical efficiency
Enclosed drum flanges to prevents ropes becoming trapped between drum and support castings quiet running

300 kg electric winch heavy duty electric winch
