PRODUCT DETAILS
Use the Digital Photo/Contact Tachometer DT-2236 for speed measurement and equipment inspection. Key confirmed specifications include display: 5 digits, 10 mm (0.4 inch) LCD (Liquid Crystal Display) with function annunciation; measurement: PHOTO TACH 5 to 99,999 RPM.
Key Features
- Multi-function, one instrument combined PHOTO TACHOMETER (RPM) & CONTACT TACHOMETER (RPM, m/min., ft/min.)
- Wide measuring range from 0.5 to 100,000 RPM
- The last value/max. value/min. value will be automatically stored in memory and can be recalled by pressing MEMORY CALL BUTTON
- High-visibility LCD with zero suppression for clear readings
- The tachometer uses the exclusive one chip Microprocessor circuit and crystal time base to accuracy offer the high accuracy measurement & fast measuring time
- The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand
Specifications
- Model: DT-2236
- Display: 5 digits, 10 mm (0.4 inch) LCD (Liquid Crystal Display) with function annunciation
- Measurement: PHOTO TACH 5 to 99,999 RPM
- Contact Tach: 0.5 to 19,999 RPM
- Surface Speed (M/min.): 0.05 to 1,999 m/min.
- Surface Speed (Ft/min.): 0.2 to 6,560 ft/min.
- Resolution: PHOTO TACH 0.1 RPM (< 1,000 RPM) 1 RPM (≥ 1,000 RPM)
- Contact Tach: 0.1 RPM (< 1,000 RPM) 1 RPM (≥ 1,000 RPM)
- Surface Speed (M/min.): 0.01 m/min. (< 100 m/min.) 0.1 m/min. (100 to 999.9 m/min.) 1 m/min. (≥ 1,000 m/min.)
- Surface Speed (Ft/min.): 0.1 ft/min. (< 1,000 ft/min.) 1 ft/min. (≥ 1,000 ft/min.)
- Accuracy: ± (0.05% reading + 1 digit)
- Sampling Time: PHOTO TACH (1 sec. / over 60 RPM)
- Contact Tach: (1 sec. / over 6 RPM)
- Photo Tach. Detecting Distance: 50 to 150 mm / 2 to 6 inch (typical max. 300 mm / 12 inch, depending upon ambient light)
- Test Range Select: Automation
- Time Base: Quartz crystal
- Circuit: Exclusive one-chip design microprocessor LSI circuit
- Battery: 4 x 1.5 V AA (UM-3) batteries
- Operation Temp.: 0-50 o C (32-122 o F)
- Power Consumption: Photo type: Approx. DC 44 mA
- Size: 215 x 65 x 38 mm (8.5 x 2.6 x 1.5 inch)
- Weight: 211 g (0.47 LB) / Without battery

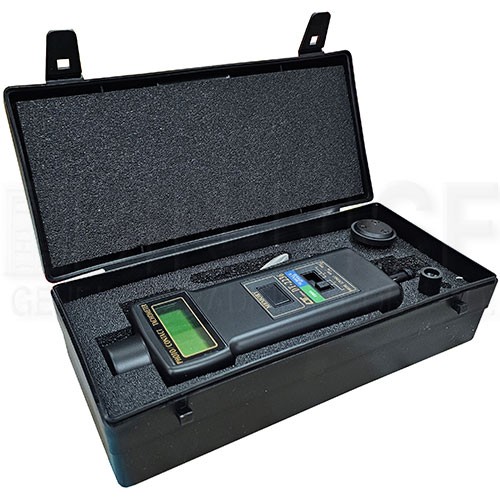

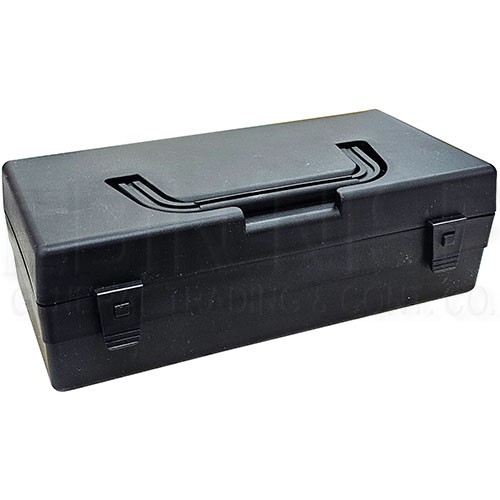

- Accessories: Carrying case - 1 PC Reflecting tape marks (600 mm) - 1 PC RPM adapter (CONE) - 1 PC RPM adapter (FUNNEL) - 1 PC Surface speed test wheel - 1 PC Operation manual - 1PC
