HYDRAULIC PRESS 50 TON - CIZETA (ITALY)

Bin No : 442010

1050.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		P.I. 50
Max. load capacity		50 ton

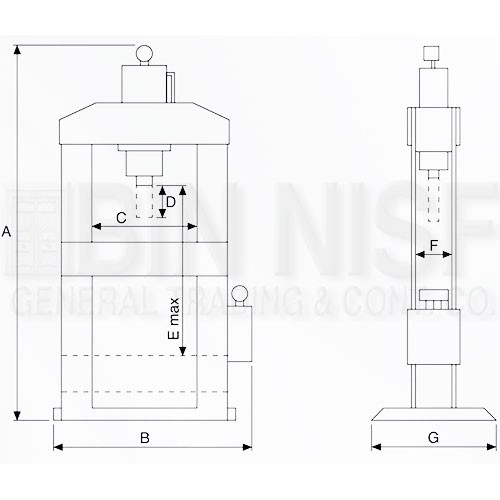

Dimensions	A	2300 mm
	B	1300 mm
	C	800 mm
	D	200 mm
	E	1100 mm
	F	180 mm
	G	750 mm
Weight		385 kg
Made		Italy

Two speed hand pump hydraulic presses with automatic re-entry of the piston
By closing the two upper hand wheels on gets the fast piston approach
By opening the side upper hand wheels on gets the high pressure
Supplied with two "v" blocks, plate and gauge to control the working pressure
Equipped with winch for the hoisting of the working table
Furnished complete of oil and drain system "air-oil" and plate for protection of the piston
The ram are in special steel treated and chromium-plated
