PRODUCT DETAILS
Model
|

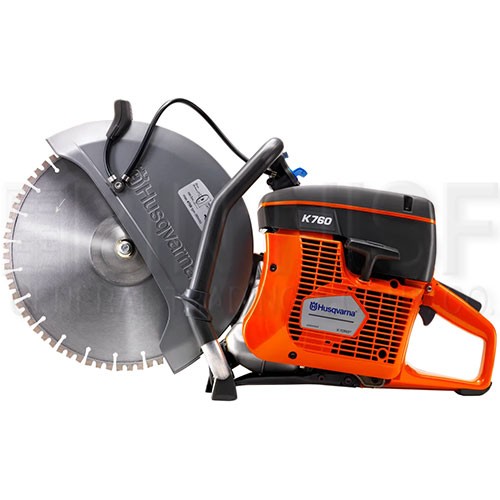

K760 (967 18 10-01)
|
Output power
|
3.7 kW
|
Cylinder displacement
|
73.5 cm³
|
Electrode gap
|
0.5 mm
|
Cylinders
|
1
|
Number of strokes
|
2-stroke engine
|
Fuel
|
Gasoline
|
Cutting depth, max.
|
100 mm
|
Blade diameter, max.
|
300 mm (12 inch)
|
Arbor diameter
|
20 / 25.4 mm
|
Blade thickness, max.
|
5 mm
|
Peripheral speed, max.
|
80 m/s
|
Sound power level, guaranteed (LWA)
|
115 dBA
|
Sound pressure level at operators ear
|
101 dBA
|
Vibrations
|
Left / front handle
|
2.4 m/s²
|
Right / rear handle
|
2.4 m/s²
|
Dimensions (L x W x H)
|
601 x 225 x 389 mm
|
Weight
|
9.6 kg
|
Made
|
Sweden
|
- Light and powerful
- A light, compact and powerful machine with superior power-to-weight ratio
- Exceptionally low vibrations
- Vibrations below 2.5 m/s2 in the cutter handles for more comfort and longer operation periods
- Long service intervals
- A strong Poly-V belt combined with our maintenance-free starter DuraStarter™ and efficient filter-system Active Air Filtration™ ensures long service intervals
- Easy to start
- The unique design of the carburettor, cylinder and digital ignition system, together with air purge and decompression valve ensure an easy start
- Optimised engine performance
- Optimised engine performance through efficient cylinder design, digital ignition system and X-Torq engine technology
- Easy to change blade guard position
- The light magnesium blade guard facilitates cutting, thanks to its step-less adjustment
- High power with less fuel
- Our built-in automatic filter compensation SmartCarb™ maintains high power and lowers fuel consumption
- Less slurry and low water consumption
- Excellent dust control with our wet cutting kit. A progressive water valve for exact adjustment of the water volume to efficiently bind the dust and reduce slurry
- Fits multiple blade bushings
- Blades with 20mm and 25.4mm bore can be fitted thanks to the reversible blade bushing
- Less emissions and fuel consumption
- X-Torq® engine produces less emissions, lower fuel consumption and produces more power
- Smooth blade stop
- Reduces the stop time of the blade when the machine is switched off, which enables you to quickly move on to the next job
- Maintenance-free starter
- Dust-sealed starter, where the return spring and the pulley bearing are sealed, gives a virtually maintenance free starter. Developed with a durable starter cord
- Reduced wear
- Reduced wear thanks to the drive belt with fully sealed transmission, which keeps out the cutting dust
- Cuts close to walls or ground
- Possible thanks to the reversible cutting arm
- Active Air Filtration™
- Two-step filtration system with centrifugal cleaning and a single paper filter increases product life and extends service intervals
- Anti-vibration system
- Reduced vibrations in the cutter handle for more comfort and longer operation periods
- DuraStarter™
- Virtually maintenance free starter, thanks to the dust-sealed starter and the durable starter cord
- EasyStart
- EasyStart ensures easier starting by reducing the compression in the cylinder
- Poly-V belt
- Provides better transmission of power, less frequent re-tensioning and extended service intervals
- SmartCarb™
- Our built-in automatic filter compensation maintains high power during the air filter life time
- Adjustment to openings
- Cutting for minor adjustments to window and door openings
- Blade shaft and bearings
- Provide extended blade life and reduces maintenance
- Constant-flow water valve
- The integrated regulator controls the water volume, ensuring a constant flow to the blade. It also ensures the amount of water is sufficient to bind the dust without creating an excess of water
- Control panel
- Light-emitting diodes indicate the direction of rotation on the control panel, while the raise and lower speed, and the advance are controlled by the potentiometers on the handlebar
- Applications:
- Asphalt cutting in roadworks
- Cutting building blocks, curbstones and garden pavers
- Burying of all kinds of cables
- Cutting cast concrete
- Regular cutting in floors and walls
- Pipe cutting
- Rail cutting
- Cutting in rescue operations
- Cutting disc not included
