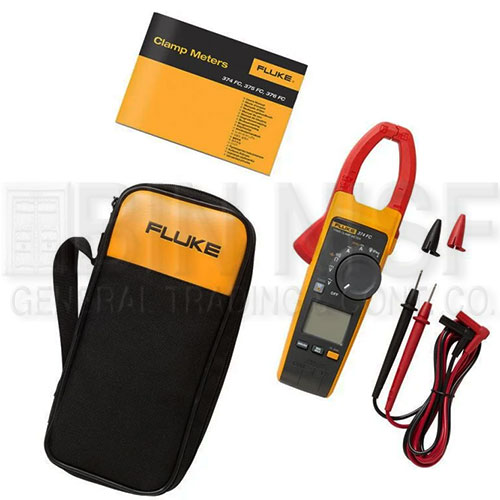

WIRELESS TRUE-RMS AC/DC CLAMP METER - FLUKE (USA)

Model

374 FC

AC CURRENT VIA JAW

Range

600.0 A

Resolution

0.1 A

Accuracy

2% ±5 digits (10 Hz to 100 Hz)

2.5% ±5 digits (100-500 Hz)

Crest factor (50 Hz/60 Hz)

2.5 @ 600 A

Add 2% for C.F. >2

AC CURRENT VIA FLEXIBLE CURRENT PROBE

Range

2500 A

Resolution

0.1 A (≤ 600 A)

1 A (≤ 2500 A)

Accuracy

3% ±5 digits (5 – 500 Hz)

Crest factor (50/60Hz)

2.5 at 1400 A

1.42 at 2500 A

Add 2% for C.F. > 2

DC CURRENT

Range

600.0 A

Resolution

0.1 A

Accuracy

2% ±5 digits

AC VOLTAGE

Range

1000 V

Resolution

0.1 V (≤600.0 V)

1 V (≤1000 V)

Accuracy

1.5% ±5 digits (20 Hz to 500 Hz)

DC VOLTAGE

Range

1000 V

Resolution

0.1 V (≤600.0 V)

1 V (≤1000 V)

Accuracy

1% ±5 digits

mV DC

Range

500.0 mV

Resolution

0.1 mV

Accuracy

1% ±5 digits

RESISTANCE

Range

6000 Ω

Resolution

0.1 Ω (≤600 Ω)

1 Ω (≤6000 Ω)

Accuracy

1% ±5 digits

CAPACITANCE

Range

1000 μF

Resolution

0.1 μF (≤ 100 μF)

1 μ F (≤ 1000 μF)

Accuracy

1% ±4 digits

MECHANICAL SPECIFICATIONS

Maximum voltage between any terminal and earth ground

1000 V

Batteries

2 AA, NEDA 15A, IEC LR6

Operating temperature

-10 °C to +50 °C

Storage temperature

-40 °C to +60 °C

Operating humidity - non-condensing (< 10°C)

≤90% RH (at 10 °C to 30 °C)

≤75% RH (at 30 °C to 40 °C)

≤45% RH (at 40 °C to 50 °C)

Operating altitude

3000 m

Storage altitude

12,000 m

Size (L x W x H)

249 x 85 x 45 mm

Weight

395 g

Jaw opening

34 mm

Flexible current probe diameter

7.5 mm

Flexible current probe cable length (head to electronics connector)

1.8 m

Safety

IEC 61010-1, Pollution Degree 2

IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V

IEC 61010-2-033:CAT III 1000 V / CAT IV 600 V

IP rating

IEC 60529: IP30, non-operating

Radio frequency certification FCC ID

T68-FBLE IC:6627A-FBLE
