MANUAL SCISSOR LIFT 1 TON - NOBLELIFT (CHINA)

Bin No : 107507

Brand: Noblelift (China)

198.000 KWD

2 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		ACX 10M
Drive		Manual
Operator type		Hand
Option		540 x 1170 mm
Load capacity		1 t (1000 kg)
Load centre distance		600 mm
Load distance, centre of drive axle to fork		978 mm
Wheelbase		1310 mm
WEIGHT
Service weight incl. battery		122 kg
Axle loading, laden front/rear		760/348 kg
Axle loading, unladen front/rear		33/89 kg
TYRES, CHASIS
Tyres		Polyurethane (PU)
Tyre size, front		Ø 180 x 50 mm
Tyre size, rear		Ø 75 x 50 mm
Wheels, number front/rear (x-driven)		2/2
Tread, front		155 mm
Tread, rear		440 mm
DIMENSIONS
Lift (standard mast)		715 mm
Height, mast extended		1660 mm
Height of tiller in driver position min/max		1240 mm
Height, lowered		85 mm
Overall length		1725 mm
Length to face of forks		492 mm
Overall width		575/695 mm
Fork dimensions		45/160/1170 s/e/l mm
Distance between fork- arms		540/685 mm
Ground clearance, centre of wheelbase		18 mm
Aisle width for pallets 800x1200		1986 mm
Turning radius		1564 mm
PERFORMANCE DATA
Lowering speed, laden/unladen		81/61 m/s
Made		China

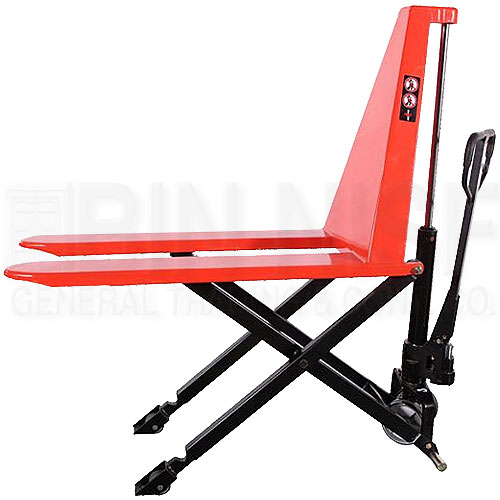

The ACX10M is the manual scissor lift pallet truck with 1000 kg (2200 lbs) capacity and 800 mm (31.1/2 inch) maximum lifting height
Designed to be used to work as a lifting table, marshalling table, work bench or as a standard hand pallet truck
Closed forktips and reinforced chassis ensure high lifetime
Ergonomically designed and comfortable handle with higher grip casing
Single cylinder for robustness and less maintenance
