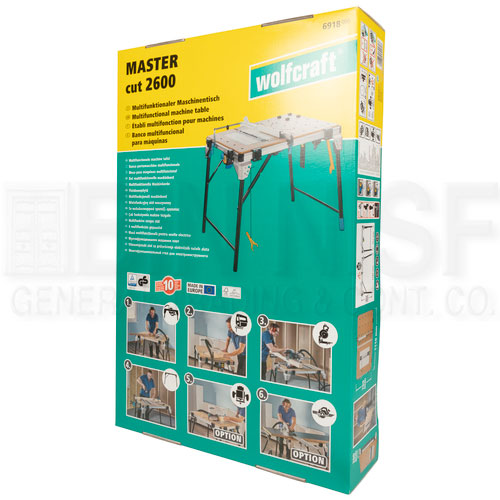

MACHINE TABLE MASTER CUT 2600 - WOLFCRAFT (GERMANY)

PRODUCT DETAILS

• Max. height of the workpiece for the circular saw bench function: 60 mm
• Max. cutting width with parallel stop as table saw: 625 mm
• Diameter of clamping holes 20 mm
• Hole spacing on worktop 128 mm
• In accordance with DIN EN 62841
• Machine area of working tables:
• For circular handsaws with riving knife, up to a maximum cutting depth of 70 mm, blade diameter of 200 mm, a base plate of max. 240 x 360 mm and a distance from the blade to the end of the motor housing of max. 225 mm; must only be used with appropriate knife insert
• Circular handsaws that do not have a riving knife can only be used in combination with riving knife art. no. 6916000 (up to max. 159 mm blade diameter) or riving knife art. no. 6917000 (from 160 up to max. 200 mm blade diameter)
• For routers with max. 230 V, max. 1800 W, max. base plate diameter: 180 mm; max. base plate height: 40 mm; for max. router bit diameters of 27 mm; must only be used with parallel milling guide (art. no. 6901000)
• For jigsaws with a base plate of max. 90 x 200 mm
• Cordless tools cannot be used

• Circular saw bench function:
• Ideal for smaller workpieces that can be pushed across the table
• Parallel cuts up to a cutting width of 625 mm
• Mitre cuts from 0 to +/- 60° with the angle stop
• Special stop guide with spring-guided compensation and gliding elements
• Compatible tool size: handheld circular saws with a cutting depth of max. 70 mm, a blade diameter of max. 200 mm, a base plate of max. 240 x 360 mm and a distance from the blade to the end of the motor housing of max. 225 mm
• With removable riving knife available separately, the table is also compatible with machines that do not have a riving knife
• Cordless tools and plunge-cut saws cannot be used

• Jigsaw table function:
• Simple cut guidance by securing of the jigsaw in the table
• Ideal for curved cuts on irregularly shaped workpieces
• Unobstructed view of the marked line
• Easy guidance of the workpiece by hand
• Compatible tool size: jigsaws with a base plate of max. 90 x 200 mm
• Includes mounting material for jigsaws
• Cordless tools cannot be used

• Work station function:

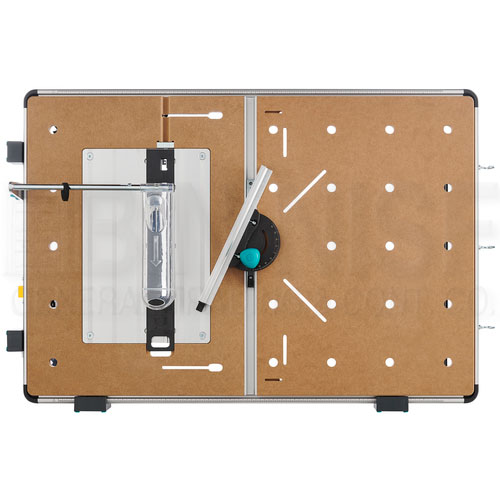

• Large worktop (dimensions: 1,035 x 695 mm) made of 22 mm thick MDF offers many clamping possibilities
• 2 large and 2 small clamping blocks for securing workpieces firmly to the table profile with clamps; they also allow freestanding storage of the folded table
• Comfortable working height of 863 mm
• Foldable legs for work on the ground
• Mobile: versatile use and space-saving storage
• Robust and stable: stable base frame made of steel and aluminium, with a load-bearing capacity of up to 120 kg, height-adjustable foot

• Mitre saw table function:
• Compatible with most commercially available mitre saws thanks to the multifunctional hole pattern in the table plate
• Includes fastening material for mitre saws
• Milling table function
• Optional accessory: parallel milling guide (art. no. 6901000) turns the MASTER cut 2600 into a real router table
• height-adjustable machine plate for smooth transitions
• Compatible tool size: routers with max. 230 V / max. 1,800 W, a base plate with diameter of max. 180 mm, a base plate height of max. 40 mm and router bit diameter of max. 27 mm
• Warning: use of the router table is only allowed in combination with the parallel milling guide (art. no. 6901000)
• Cordless tools cannot be used

• Function as station for guided circular saws:
• Optional accessory: with the guide rail FKS 145 (art. no. 6913000) you can cut large workpieces on the table to fasten the guide rail FKS 145 to the MASTER cut 2600, we recommend using the screw clamp set (art. no. 6897000)
• Cordless power tools must not be installed in the MASTER cut, as they cannot be connected to the safety switch

• Scope of delivery:
• 1 Machine Table MASTER cut 2600
• 1 Switch clamp
• 1 Push stick
• 1 Safety shield
• 1 EU safety switch
• 4 Clamping blocks
• 4 Clamping jaws
• 1 Machine plate with safety lock
• 2 Knife inserts for handheld circular saws, jigsaws and routers
• 1 15 mm insert ring for router
• 1 25 mm insert ring for router
• 1 Angle stop
• 1 Parallel stop
• Mounting material for tools
