FISCHER N5X30 ZK /BLISTER/ PLUG + COUNTER SUNK SCREW 20 PIECES - FISCHER (GERMANY)

Bin No : 206322

Brand: FISCHER (GERMANY)

1.150 KWD

8 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	45476
Drill diameter (d0)	5 mm
Effect. anchorage depth (hef)	25 mm
Anchor length (l)	30 mm
Min. drill hole depth for through fixings (h2)	45 mm
Max. fixture thickness (t fix)	5 mm

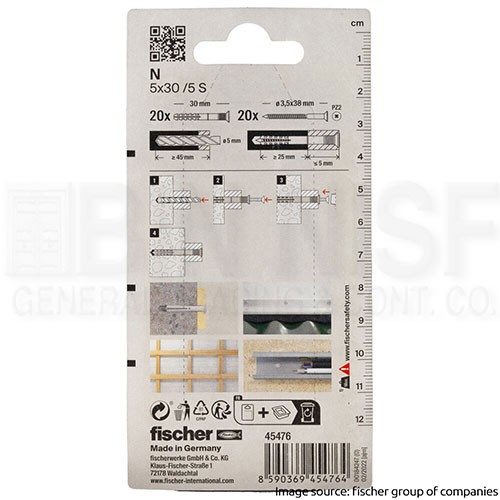

Contents	20 x Hammerfix N 5 x 30 20 x nail 3.5 x 38 Z pre-assembled
Amount	20 pcs
Packaging	Blister card
Made	Germany

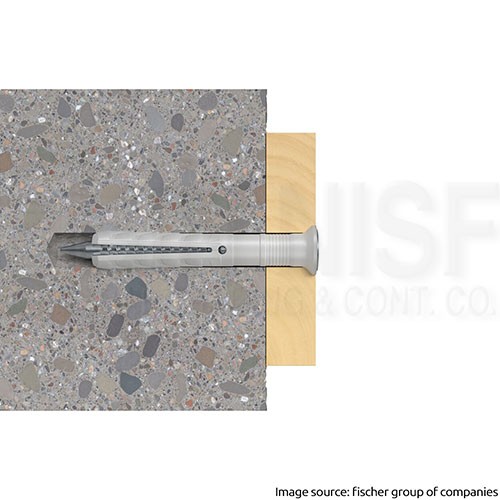

Fast Hammerset installation saves time: ideal for series installation
Subsequent dismantling of the nail screw with a cross-slot recess is possible
With countersunk head
Simple and secure installation: Integrated hammer-in stop prevents premature anchor spreading

Advantages:

The rapid hammerset installation reduces the amount of time required and allows for an economic series installation
Together with the cross-slot recess, the thread of the nail screw allows the screw to be removed, thus allowing for subsequent dismantling
The integrated hammer-in stop prevents the plug from expanding prematurely (jamming), thus enabling a problem-free installation
The wide range of diameters and usage lengths provides the correct plug for every fixing

Applications:

Substructures made of wood, Wall connection or plaster profiles, Cable and pipe clips, Perforated tapes

Building materials:

Concrete, Solid sand-lime brick, Building brick, Natural stone, Solid brick made from lightweight concrete, Aerated concrete, Solid panel made from gypsum
