PRODUCT DETAILS
Model
|
537660
|

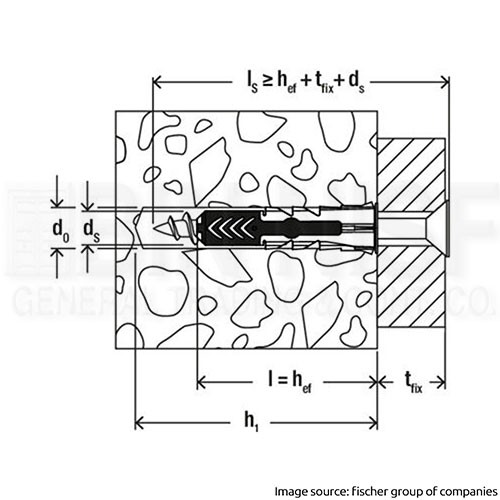

Drill diameter (d0)
|
6 mm
|
Min. drill hole depth (h1)
|
65 mm
|
Min. panel thickness (dp)
|
12.5 mm
|
Anchor length (l)
|
50 mm
|
Min. bolt penetration (lE,min)
|
55 mm
|
Wood and chipboard screws (ds)
|
4.5 x 60 mm
|
Drive
|
PZ2
|

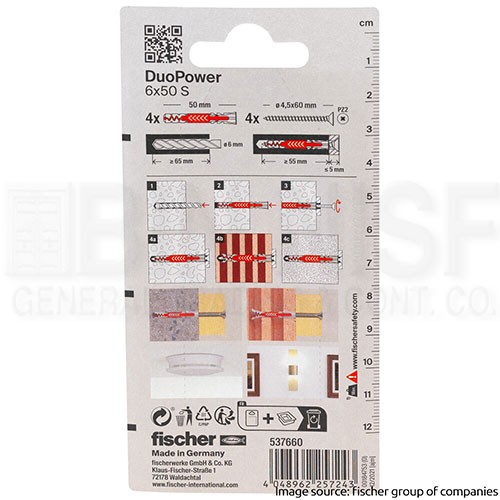

Amount
|
4 pcs
|
Packaging
|
Blister card
|
Made
|
Germany
|
- Combination of two material components for more performance
- Secure functions for solid (expansion) and hollow and panel building materials (folding/knotting)
- Easy installation: narrow edge of the plug prevents it from falling deeper into the drill hole
- Best possible feedback from the anchor - you can feel that the anchor is sitting perfectly
- With the appropriate screw for a perfect hold
Advantages:
- Two component materials for top load values and intelligent functioning depending on the substrate
- The narrow plug rim prevents slipping into the drill hole
- The greater anchorage depth of the DuoPower 6 x 50, 8 x 65 and 10 x 80 means that the plug is especially suited to fixings in hollow building materials, aerated concrete and to bridge plaster
- Great feedback (feel-good factor) of the plug. You can feel exactly, when the plug is installed perfectly
- The serrated anti-rotation feature prevents rotation in the drill hole during installation
Applications:
- Wall cabinets, Shelves, Mirror cabinets, Tool walls, Heavy mirrors, Wardrobes, Wash basin fixings, Plumbing and heating fixings, Bath and toilet installations
Building materials:

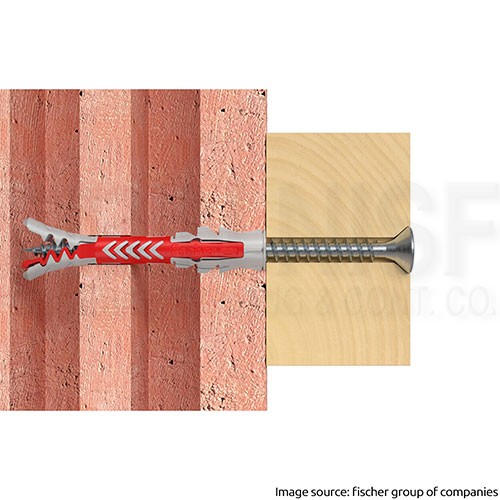

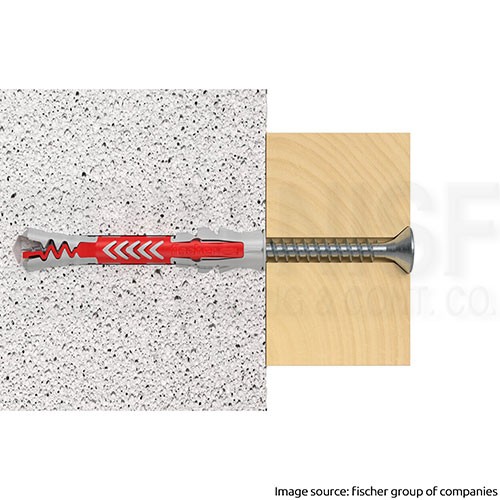

- Concrete, Solid brick, Solid sand-lime brick, Aerated concrete, Vertically perforated brick, Perforated sand-lime brick, Plasterboard, Hollow blocks made from lightweight concrete, Cavity floor slabs made from bricks and concrete or similar, Natural stone, Solid brick made from lightweight concrete
