DIGITAL COATING THICKNESS GAUGE (F & NF TYPE)

Bin No : 4540211

205.000 KWD

5 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	CM-8825FN
Display	4 digits, 10 mm LCD
Range	0~1250 um/0~50 mil (other range may be specified)
Resolution	0.1 um (0~99.9 um) 1 um(over 100 um)
Accuracy	± 1~3% n or 2.5 um or 0.1 mil (whichever is the greater)
PC interface	with RS-232C interface
Power supply	4 x 1.5 AAA (UM-4) battery
Operating condition	Temp. 0~50oC, Humidity < 80%
Size	126 x 65 x 27 mm (5 x 2.6 x 1.1 inch)
Weight	about 81 g (not including batteries)

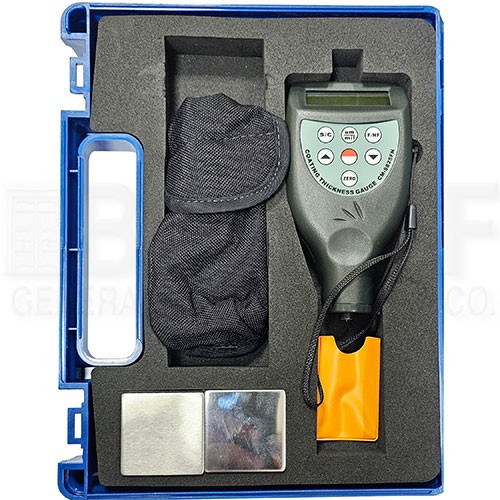

Accessories	Carrying case 1pc. Operation manual 1pc. F probe (in built) 1 pc. N probe (in built) 1 pc. Calibration foils 1 set Substrate (Iron) 1 pc. Substrate (Aluminium) 1 pc.

It meets the standards of both ISO2178 and ISO-2360 as well as DIN, ASTM and BS. Suitable for the laboratory and for use in harsh field conditions
The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickel etc.). often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
The N probes measure the thickness of non-magnetic coatings on non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminium, brass, non-magnetic stainless steel, etc.
Automatic substrate regocnition
Manual or automatic shutdown
Two measurement mode: Single and Continuous
Wide measuring range and high resolution
Metric/Imperial conversion
Digital display gives exact reading with no guessing or errors
Can communicate with PC computer for statistics and printing by the optional cable
