ELECTRIC WINCH - REMOTE CONTROLLED 12 V - RIBIMEX (ITALY)

Bin No : 101001

Brand: Ribimex (Italy)

58.000 KWD

Out of Stock Login to save in Wish List

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model			PE12V / T1
Voltage			12 V
Steel cable length (m x mm)			9.14 x Ø4.8
Cable resistance max.			1800 kg
Cable tensile strength			2160 N/mm²
Line speed (with load)			1.82 m/min
Max. boat size			5.48 m
Max. boat weight			5000 lbs (2268 kg)
Hook dimensions			1/4 inch
Mounting plate			222 x 125 x 4.5 mm
Winch capacity according to type of load	Without pulley block	Max. length	9.14 m
		Rolling load	6000 lbs (2721 kg)
		Marine load	5000 lbs (2268 kg)
		Pulling load (traction)	2000 lbs (907 kg)
	With pulley block	Max. length	4.57 m
		Rolling load	11000 lbs (5000 kg)
		Marine load	9900 lbs (4500 kg)
		Pulling load (traction)	3960 lbs (1800 kg)
Overall dimensions			250 x 241 x 190 mm
Weight			21 kg
Made			China

Ideal for dragging objects related to all sectors such as rowing, trekking but also for industrial or forestry work
12 V - 25 Ah - 300 W motor

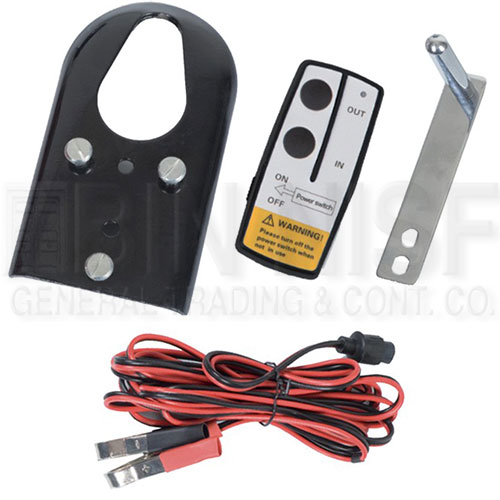

Forward / reverse remote control with radio remote control
Equipped with pulley and braided steel cable
Electric cable fitted with a splash-proof socket and circuit breaker
For greater safety: remote control with waterproof socket
Emergency handle with adjustable clutch
Delivered with installation kit suitable for trailer
