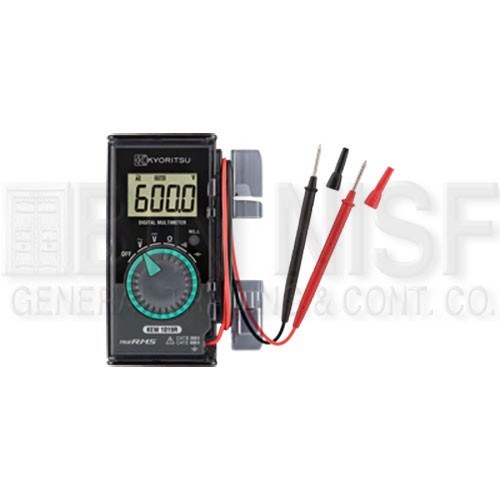

DIGITAL MULTIMETER 1019R - Kyoritsu (Japan)

Model

1019R

DC V

600.0mV/6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±0.8%rdg ±5dgt (600.0mV/6.000/60.00V)
±1.0%rdg ±5dgt (600.0V)

AC V [RMS]

6.000/60.00/600.0V (Input impedance: approx. 10MΩ)
±1.3%rdg±5dgt (6.000/60.00V) (50/60Hz)
±1.7%rdg±5dgt (6.000/60.00V) (45 - 500Hz)
±1.6%rdg±5dgt (600.0V) (50/60Hz)
±2.0%rdg±5dgt (600.0V) (45 - 500Hz)

Ω

600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ
±1.0%rdg±5dgt (600.0Ω/6.000/60.00/600.0kΩ/6.000MΩ)
±2.5%rdg±5dgt (40.00MΩ)

Continuity buzzer

600.0Ω (Buzzer threshold value 60Ω or less)

Capacitance

6.000/60.00/600.0nF/6.000/60.00/600.0µF
±3.5%rdg±50dgt (6.000nF)
±3.5%rdg±10dgt (60.00nF)
±3.5%rdg±5dgt (600.0nF/6.000/60.00µF)
±4.5%rdg±5dgt (600.0µF)

Applicable standards

IEC 61010-1 CAT III 300V, CAT II 600V Pollution degree 2
IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2

Power source

CR2032 (3V) × 1
Approx. 120 hours, Auto sleep: approx: 15 minutes

Dimensions

126(L) × 85(W) × 18(D)mm

Weight

Approx. 135g (including hard case, battery)

Included Accessories

9188 (Hard case), CR2032 × 1, Instruction manual
