Bin No : 101005
Brand: Elephant (Japan)
637.000 KWD
(0 review)
|
Model |
DA-1S |
||
|
Power source |
Three-phase |
||
|
Limit switch |
250v 20A / 600v 10A |
||
|
Working load limit (W.L.L) |
2200 lbs |
||
|
Working load limit (W.L.L) |
1 mt |
||
|
Test load |
1.25 mt |
||
|
Standard lift |
10 ft (3 m) |
||
|
Load chain (dia. x number of falls) |
7.1 mm x 1 |
||
|
Lifting motor output |
2.31 hp |
||
|
Lifting speed |
50 Hz |
22 ft/min |
|
|
60 Hz |
27 ft/min |
||
|
Minimum distance H |
23 inch |
||
|
Ampere |
8.7 A |
||
|

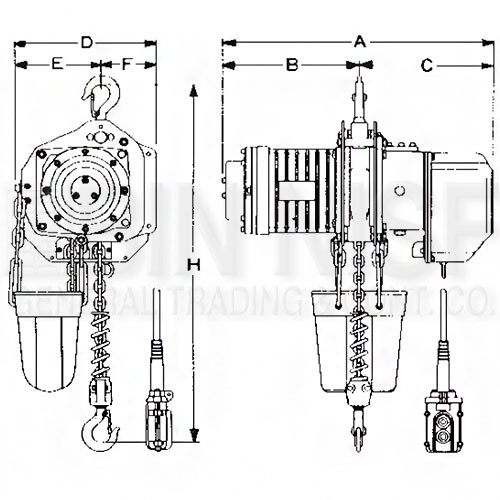

Dimensions (inch) |
A |
22.2 |
|
|
B |
11.4 |
||
|
C |
10.7 |
||
|
D |
11.8 |
||
|
E |
6.8 |
||
|
F |
5 |
||
|
Net weight |
158 lbs |
||
|
Made |
Japan |
||
elephant 1 ton chain block
