PRODUCT DETAILS
|
Model
|
MASTER 750 ERGO (6871 000)
|
|
Product dimensions (W x D x H)
|
680 x 700 x 950 mm
|
|
Dimensions of folded product
|
680 x 190 x 970 mm
|
|
Working heights
|
725 - 950 mm
|
|
Worktop
|
680 x 390 mm
|
|
Clamping width, max.
|
130 mm
|
|
Clamping width with clamping jaws, max.
|
425 mm
|
|
Tiltable worktop, max.
|
60o
|
|
Table plate material
|
MDF
|
|
Load capacity
|
125 kg
|
|
Product weight
|
13.2 kg
|
- Height-adjustable clamping and machine table
- For mitre saws and wolfcraft drill stands, for versatile, ergonomic work
- Swivelling tabletop with quick adjuster for conveniently and quickly shifting the front tabletop for faster clamping
- Fame made of sturdy steel pipe with quick-folding function for space-saving storage and transport; load capacity of up to 125 kg
- Height-adjustable in six steps from 725 - 950 mm, for ergonomic working
- Snap-in points and lockable extension ensure safety when machines are used
- Fastening options for mitre saws and wolfcraft drill stands (art. no. 5027000 and 3406000), for versatile, ergonomic working
- Quick adjuster for conveniently and quickly shifting the front tabletop
- can be continuously swivelled through 60°, for a versatile range of possible uses
- Vertical clamping of workpieces up to a width of 110 mm possible at the highest level
- Horizontal clamping width of 130 mm between the tabletop boards and 425 mm between the plastic clamping jaws
- 4 large plastic clamping jaws with anti-slip supports – with reversible painting tip that helps save time when painting workpieces + anti-slip support rest for raising the workpiece
- 2 pipe clamps for holding round material
- With quick-folding function for space-saving storage and transport
- Made of sturdy tubular steel with a load capacity of up to 125 kg; versatile

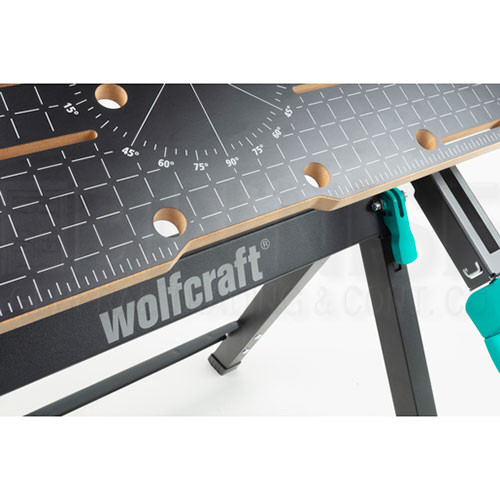

- Tabletops made of coated MDF with FSC certification have chamfered edges and provide a work surface of 680 x 390-520 mm
- Chamfered carrying recess and oval, smooth aluminium bar for convenient transport
- Tool ledge with holders for storing the plastic clamping jaws or other tools
- Feet with anti-slip rubber pads allow the folded table to be leaned against the wall safely
- Easy assembly in just a few additional easy steps, as the base elements are preassembled
- Quality tested by technical inspection authority for safety
