PRODUCT DETAILS
Divisions
1C
63mm Pocket
85/103/0
Range
-30 to +50 C&F

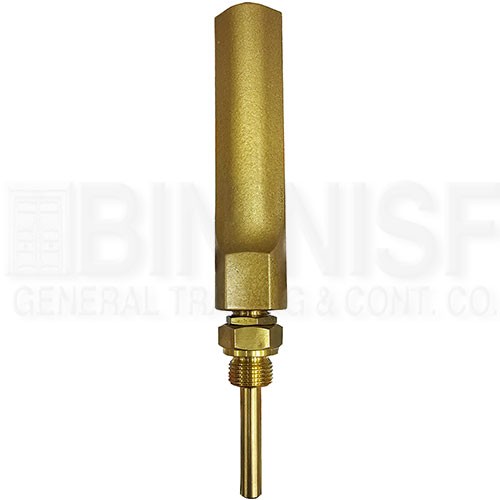

150mm V-Line Thermometers.
Brannan V-Line Thermometers are primarily used in industrial applications such as Marine and Heating markets.
The durability and vibration-resistance of the product lend itself to these more robust end uses.
The temperature scales of the product vary from -30°C to 600°C.
We offer a broad selection of temperature ranges in both straight and 90° angled cases in 110mm, 150mm and 200mm lengths.
Additionally, we have a range of 135°, obtuse-angled cases in 150mm and 200mm lengths.
Case materials are Polypropylene (up to 120°C) and Aluminum for higher ranges.
Lens glass offers a clear view of the scale, in Blue Spirit (up to300°C).
Pockets are available in Brass with standard connections as 1/2” BSP, with other threads available on request.

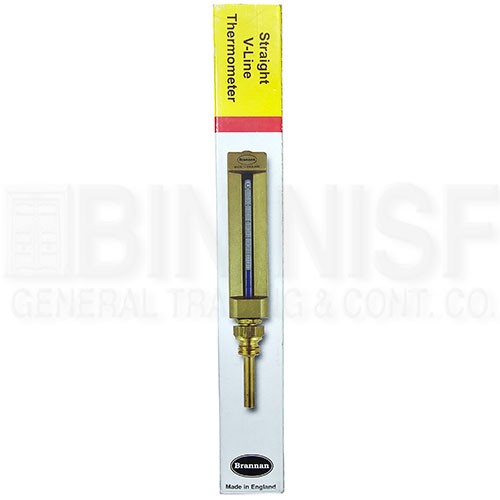

The straight cased V-Lines are fitted with screw-in pockets as standard.
Angled V-Lines are supplied with push-on pockets as standard and tightened with grub screws.
