VENTILATING FAN INDUSTRIAL 45GTC - KDK (JAPAN)

Bin No : 317558

Brand: KDK (Japan)

103.000 KWD

7 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	45GTC
Blade size	18 inch (450 mm)
Voltage	Three phase
Frequency	50 Hz
Consumption	230 W
Air volume	5550 cmh (3267 cfm)
Noise	52 dB(A)
Max. speed	1460 rpm (min^-1)

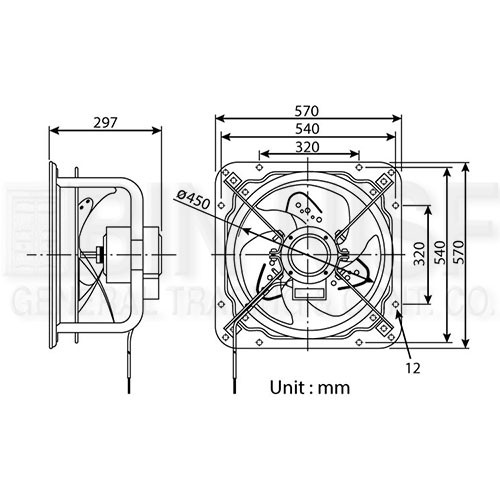

Dimensions (W x H x D)	570 x 570 x 297 mm
Weight	18.50 kg

High pressure series
Reversible, high performance motor
Distinctive wave shape blade delivers a smooth and turbulence-free airflow
Bell mouth construction incorporated with new blade enables operation with high static pressure
Durable powder coating ensure high rust-resistant capability
Unique drain mechanism avoids the ingress of water and dust into the motor for excellent durability
High performance totally enclosed motor with thermal cut-off
Able to be used over an ambient temperature range of from -10 to +50^oC
Possible to install horizontally or vertically
