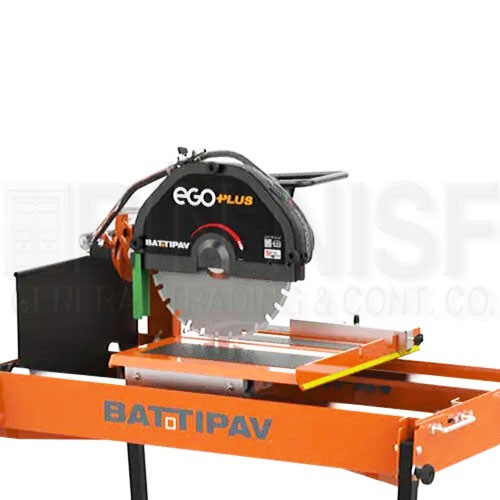

MASONRY SAW EGO PLUS 8000J - BATTIPAV (ITALY)

Bin No : 429059

Brand: Battipav (Italy)

412.500 KWD

2 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	EGO PLUS 8000J
Voltage	230V~, 50 Hz, 9 A
Power	3 hp (2.2 kW)
Rotation speed	2800 rpm
Diamond disk Ø	300 or 350 mm (not included)
Bore Ø	25.4 mm
Amperometrical protection	13 A
Max. cutting length	800 mm
Max. cutting depth at 90° (ø350 mm)	110 mm
Max. cutting depth at 90° (ø300 mm)	85 mm
Max. cutting depth in 2 runs (ø350 mm)	125 mm
Max. cutting depth at 45°	80 mm
Working table size	500 x 445 mm
Wheels Ø	100 mm
Dimensions	1185 x 758 x 1310 mm
Net weight	62.5 kg
Made	Italy

EGO PLUS is a masonry saw ideal for the building sector
Cuts straight and 45° angle of bricks, stones, concrete-blocks and porcelain gres
Single phase engine 230V 50Hz 3 hp / 2.2 kW with thermal and amperometrical protection
Switch with release coil
Overheat protection with manual reset
Sliding working table and tilting cutting head
Equipped with 6 registrable nylon wheels with 12 ball-bearings for perfect sliding
Tilting cutting head for one greater rapidity and precision in the execution of particular cuts. It can be locked at the wished height
Cutting head turning at 45°
Adjustable goniometer fence
Water recycling pump type S0
Usefeul locking wheels Ø100 mm
Water cooled diamond blade (not included)*
