HYDRAULIC RECOVERY WINCH 12000 LB - COME UP (TAIWAN)

Bin No : 108016

Brand: Come-up (Taiwan)

476.000 KWD

1 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model	HV-12
Rated line pull	5440 kg / 12,000 lb (SAE J706 rating) 5.100 kg (EN 14492-1 rating)
Line speed (at 1^st layer of rope)	10 m/min at 60 l/min (33 fpm at 15.9 g/min)
Operation pressure	150 bar (2175 psi)
Max oil flow	60 l/min (15.9 g/min)
Hydraulic motor	125 cm³/rev (7.6 in³/rev)
Gear ratio	2-stage planetary gear 19.4:1

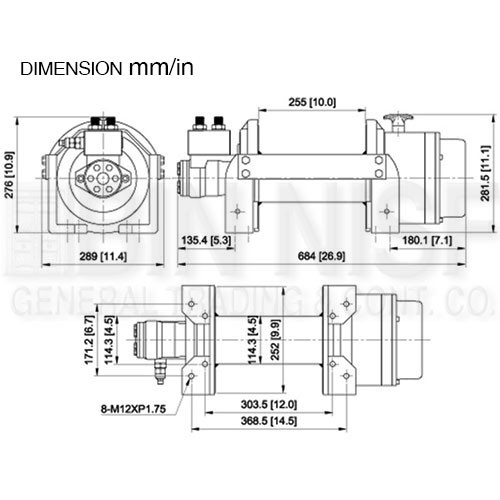

Drum barrel diameter	114.3 mm (4.5 inch)
Drum flange diameter	252 mm (9.9 inch)
Distance between flanges	255 mm (10 inch)
Mounting bolt pattern	303.5 x 114.3 mm (12 x 4.5 inch) 368.5 x 171.2 mm (14.5 x 6.7 inch)
Wire rope recommended	12 x 39 mm
Made	Taiwan

Winch construction: Aluminum die cast housings with steel drum
Clutch (Freespooling): Rotating ring gear
Brake: Spring applied drag brake together with over-center valve supplied
Rotation of winch: Wire rope shall be under-wound orientation only
Powered by an onboard hydraulic pump or PTO for variable recovery speeds for high working rate
7.6 in3 / rev highly efficient and constant operating torque motor with 12,000 lb capacity
Hardened 2 stage planetary gear train with 19.4:1 gear ratio provides faster line speed
Turn clutch by a ergonomic T-handle for rapid wire rope payout
Drag brake and over-center valve provided for holding full load
Great for severe duty trailers, roll-back carriers, and commercial recovery application
