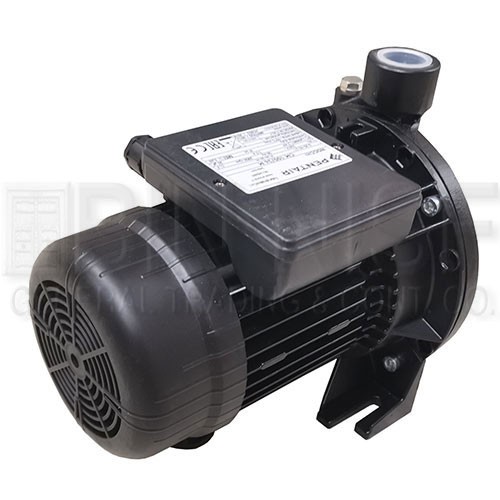

HORIZONTAL CENTRIFUGAL PUMP CM 100/36M - PENTAIR STA-RITE (ITALY)

Bin No : 5210125

Brand: Pentair (Italy)

84.500 KWD

65 Items Available

*Pictures shown are for illustration purpose only, Actual product may vary.
Usually delivered in 3 business days after order confirmation. Please check Delivery Policy

PRODUCT DETAILS

Model		CM 100/36M
Rated voltage		230 V
Motor power		1 hp (0.75 kW)
Absorbed power		1.7 hp (1.25 kW)
Max. capacity		120 l/min (7.2 m³/h)
Max. height		35 m
Max. Suction height		5 m
Connections	Inlet	1 inch
	Outlet	1 Inch
Max. liquid temperature		90^oC
Max. operating pressure		8 bar
No load speed		2850 rpm
Pump body		Cast iron
Motor casing
Motor shaft		Stainless steel
Mechanical seal		Graphite
Counterface		Ceramic
Gaskets		NBR 70 shore
Degree of protection		IP 44
Insulation class		F
Made		Italy

Single impeller centrifugal pump
Silent with optimal hydraulic performance
Single phase power supply with capacitor permanently on the thermal protection built into the motor casing
Applications:
